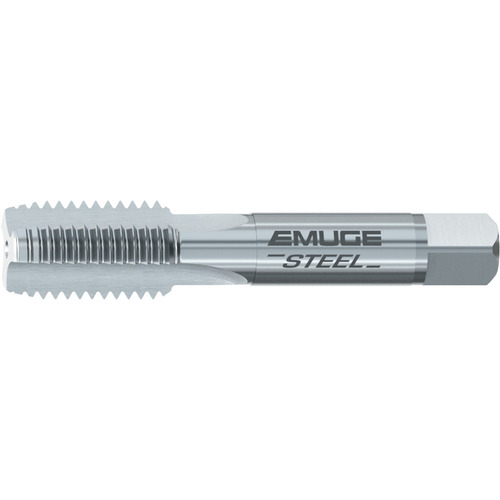

Straight Flute Tap; M24 x3 mm × 110 mm OAL ; 4 FL ; HSSE ; Bright ; Metric ; 6HX ; Series 0101051
Straight Flute Tap; M24 × 3 mm ; 110 mm OAL ; 4 FL ; HSSE ; Uncoated ; 6HX ; Series 0101051
| Thread Diameter Size (TDZ) | M24 | Standard | DIN |
| Thread Pitch (TP) | 3 mm | Tool Type | Rekord A-Steel |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Flute Type | Straight |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | A0101051 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M24 × 3 |
Product Features
| Remarks | • Rekord A-Steel LH is a straight flute design for high speed tapping in short chipping materials in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
