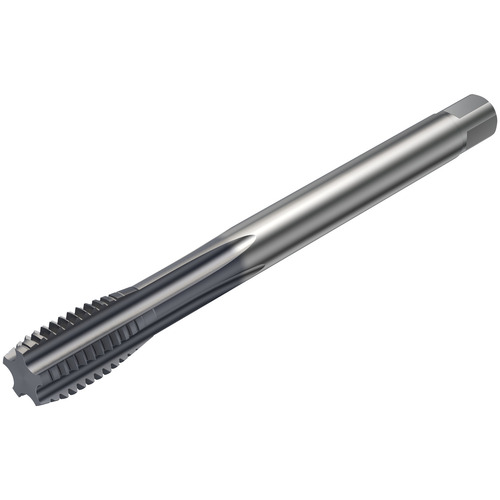

T100-KM102DB-M12X150D210 COROTAP 100
Straight Flute Tap; M12 × 1.5 mm ; 100 mm OAL ; 5 FL ; Carbide ; TiAlN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M12 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.5 mm | Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric | Standard | DIN374 |
| Overall Length (OAL) | 100 mm | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 21 mm | Flute Type | Straight |
| Usable Length (LU) | 73 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Applicable Material | | Cast Iron | | Thread Size | M12 × 1.5 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.1160
