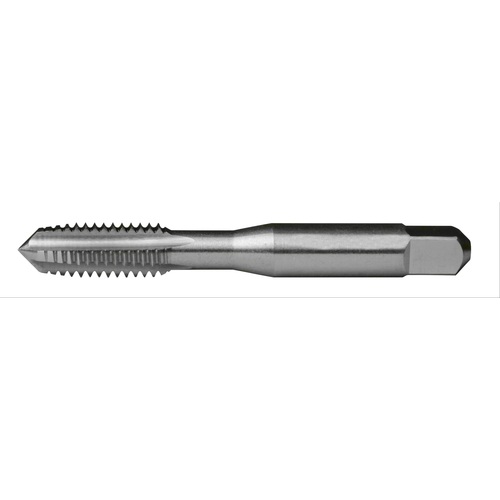

#10-32 UNF 3 Flute H3 HSS Standard Plug Chamfer General Purpose Hand Tap- Bright
Straight Flute Tap; #10 - 32 ; 2.38″ OAL ; 3 FL ; HSS ; Uncoated ; H3 | 2B ; Series 1002
| Thread Diameter Size (TDZ) | #10 | Chamfer | Plug |
| Threads per Inch (TPI) | 32 | Coating | Uncoated |
| Thread Standard | NF | Flute Type | Straight |
| Overall Length (OAL) | 2.38″ | End Shape | Square |
| Thread Cutting Part Length (THL) | 1/2″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Application | General Purpose | Length Group | 1.5D |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1002 |
| Thread Tolerance Class (TCTR) | H3 | 2B | Thread Size | #10 - 32 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.015
