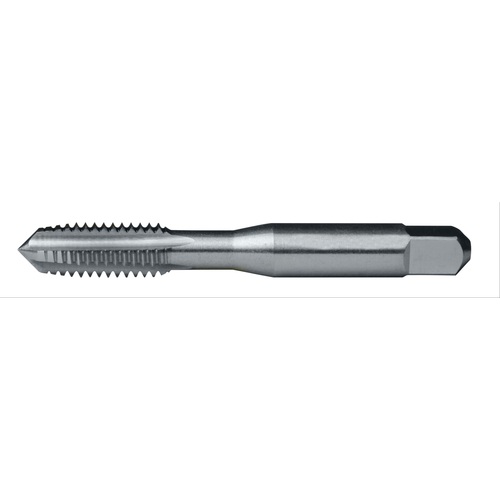

#6-32 UNC 3 Flute H2 HSS Standard Taper Chamfer General Purpose Hand Tap- Bright
Straight Flute Tap; #6 - 32 ; 2″ OAL ; 3 FL ; HSS ; Uncoated ; H2 | 2B ; Series 1001
| Thread Diameter Size (TDZ) | #6 | Chamfer | Taper |
| Threads per Inch (TPI) | 32 | Coating | Uncoated |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2″ | End Shape | Square |
| Thread Cutting Part Length (THL) | 0.38″ | Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Application | General Purpose | Length Group | 1.5D |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1001 |
| Thread Tolerance Class (TCTR) | H2 | 2B | Thread Size | #6 - 32 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.007
