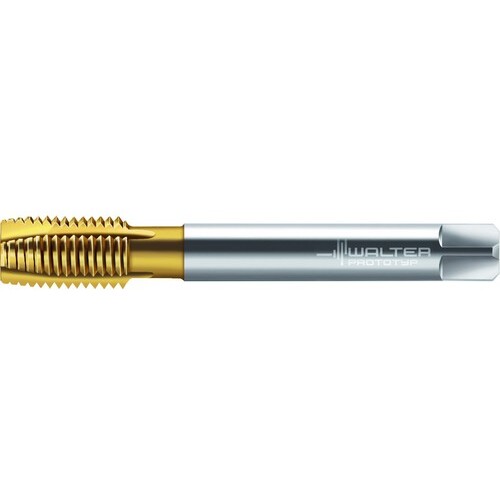

M10x1.25 6H 3 Flute HSS TiN Straight Flute Tap
Spiral Point Tap; M10 × 1.25 mm ; 104.39 mm OAL ; 3 FL ; HSS ; TiN ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Standard | DIN 374 |
| Thread Size | M10 × 1.25 | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Thread Diameter Size (TDZ) | M10 | Thread Cutting Part Length (THL) | 20 mm |
| Thread Pitch (TP) | 1.25 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Thread Tolerance Class (TCTR) | 6H | Flute Length | 37 mm |
| Overall Length (OAL) | 104.39 mm | Flute Type | Straight |
| Coating | TiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
Product Features
| Family Description | P2136005-M10X1.25 | Country of Origin | Germany |
Shipping Info
Package Weight
0.078
