781 5/8-18 H3 4F SP/FL B

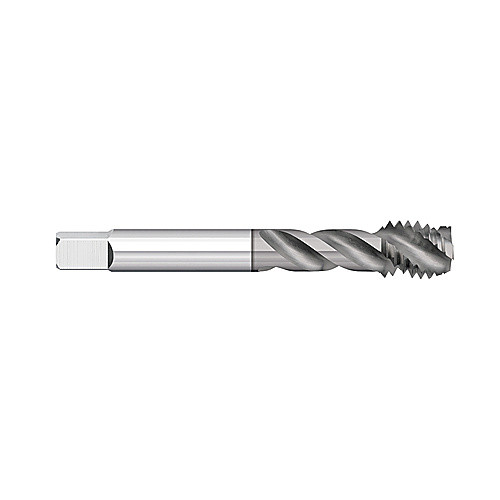

Spiral Flute Tap; 5/8″ - 11 ; 3-13/16″ OAL ; 4 FL ; HSS ; TiCN ; H3
| Thread Diameter Size (TDZ) | 5/8″ | Cutting Length | 41/64″ |
| Threads per Inch (TPI) | 11 | Cutting Edge Material | HSS |
| Thread Standard | UN | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 3-13/16″ | Standard | ANSI |
| Thread Cutting Part Length (THL) | 41/64″ | Tool Type | High Performance Tap |
| Usable Length (LU) | 41/64″ | Chamfer | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Coating | TiCN |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.186
