12X.0X12X12-36X125 2FL SC CARB EM

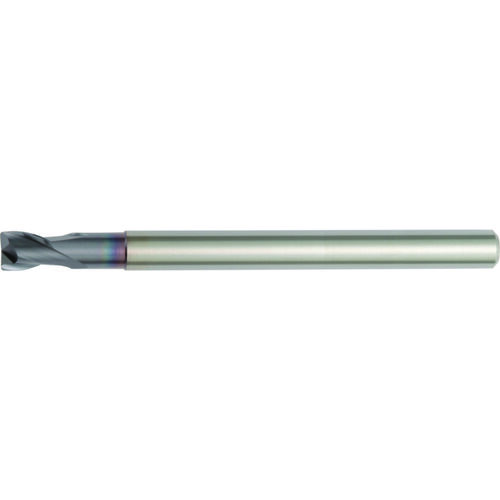

Corner Radius End Mill; 12 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 125 mm OAL ; 2 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 36 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 125 mm | Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 30 Degrees|CW | Decimal Equivalent | 0.4724″ |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.43
