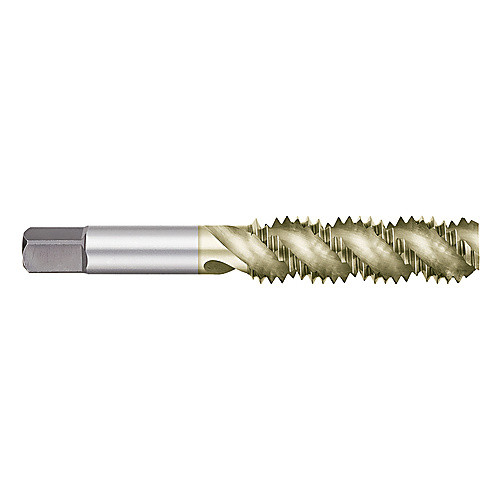

891 7/16-20 H3 3F SEMI BO
Spiral Flute Tap; 7/16″ - 20 ; 3-5/32″ OAL ; 3 FL ; HSS ; ZrN ; H3
| Thread Diameter Size (TDZ) | 7/16″ | Cutting Length | 1-7/16″ |
| Threads per Inch (TPI) | 20 | Cutting Edge Material | HSS |
| Thread Standard | UN | Thread Tolerance Class (TCTR) | H3 |
| Overall Length (OAL) | 3-5/32″ | Standard | ANSI |
| Thread Cutting Part Length (THL) | 1-7/16″ | Tool Type | General Purpose Tap |
| Usable Length (LU) | 1-7/16″ | Chamfer | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Coating | ZrN |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 52 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.068
