1.6X6X2.4X4X50 SC FIN 2FL CARB EM

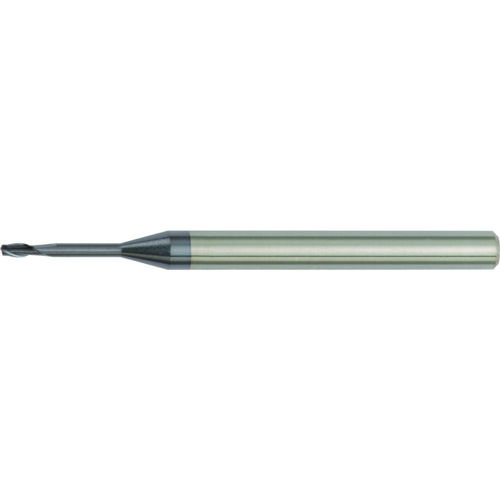

Square End Mill; 1.6 mm Dia. × 2.4 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 5 %
| Cutting Diameter (DC) | 1.6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2.4 mm | Usable Length (LU) | 4 mm |
| Overall Length (OAL) | 50 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 30 Degrees|CW | Decimal Equivalent | 0.063″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.039
