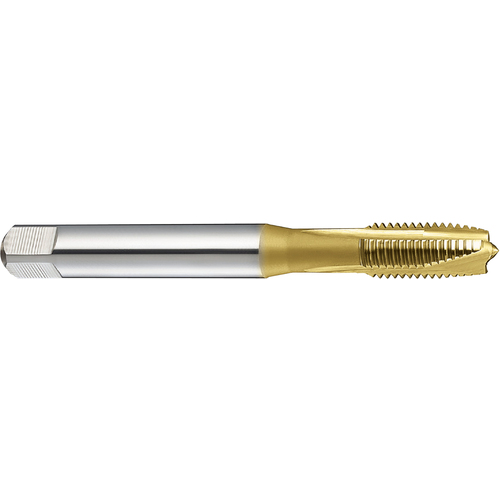

3/8-16 H5 SP TAP TTS66485
| Thread Standard | UNC | Application | High Speed Tapping |
| Thread Size | 3/8″ - 16 | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | 3/8″ | Thread Cutting Part Length (THL) | 5/8″ |
| Threads per Inch (TPI) | 16 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | H5 | Tapping Prehole Diameter (Pre-hole) | 0.3182″ |
| Usable Length (LU) | 1.252″ | End Shape | Plug |
| Overall Length (OAL) | 2.94″ | Shank Type | Square |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | TiN | Square Size | 0.286″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS-PM | Series/List # | TTS66 |
| Standard | 302A |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.875
Package Width
0.75
Package Height
0.625
Package Weight
0.999
