625E51032EW M42 HSS ER D=2 AP=3 Z=6 R=.120

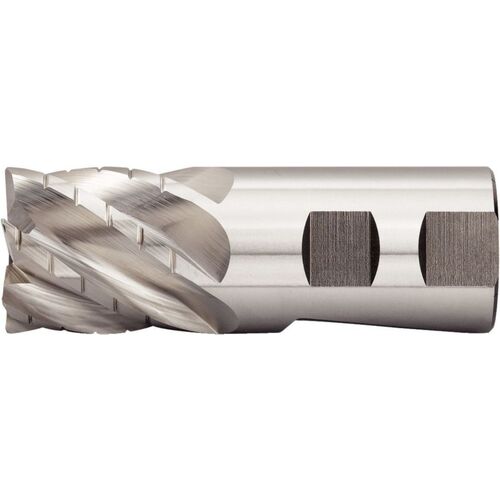

Corner Radius End Mill; 2″ Dia. × 3″ LOC × 2″ Shank Dia. × 6-3/4″ OAL ; 6 FL ; HSSCo ; Uncoated
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 2″ | Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 3″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 6-3/4″ | Corner Radius (RE) | 0.12″ |
| Cutting Edge Material | HSSCo | Tool Type | Center Cut|Single-End |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 38 Degrees|CW | Decimal Equivalent | 2″ |
| Shank Type | Whistle Notch |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0073
