1/2X5/8X1/2X5 R.04 SC 4FL CARB EM

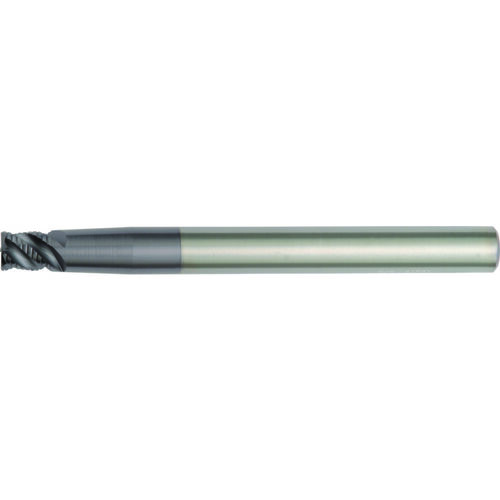

Corner Radius End Mill; 1/2″ Dia. × 1/2″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 1.95″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Applicable Material | | Stainless Steel | Hard Materials | |
| Overall Length (OAL) | 5″ | Corner Radius (RE) | 0.04″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.04″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.7169
