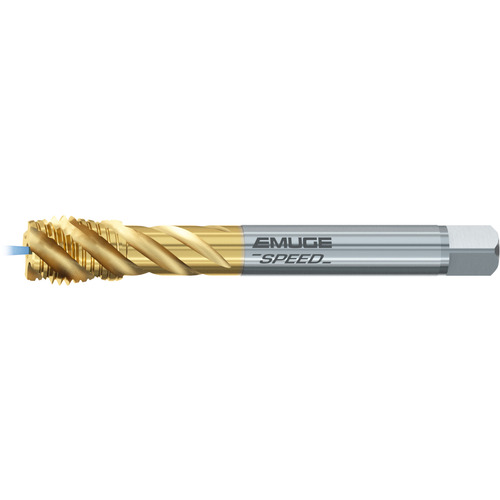

Spiral Flute Tap; M10 × 1.25 mm × 100 mm OAL ; HSSE-PM ; TiN ; Metric ; 6HX
Spiral Flute Tap; M10 × 1.25 mm ; 100 mm OAL ; HSSE-PM ; TiN ; 6HX

| Thread Diameter Size (TDZ) | M10 | Tool Type | Enorm - Speed |
| Thread Pitch (TP) | 1.25 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | General Purpose | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-PM | Series/List # | C3650F01 |
| Thread Tolerance Class (TCTR) | 6HX | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs.
• Longer tool life and more consistent thread quality.
• Speed Taps reduce threading cycle times. | Country of Origin | Germany |
Shipping Info
Package Weight
.072
