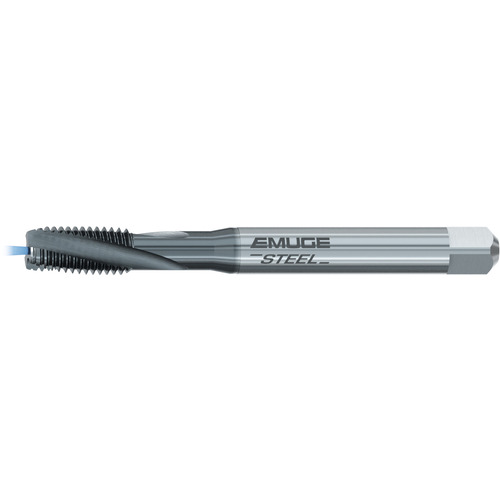

Spiral Flute Tap; #10 -32 × 2.756″ OAL ; HSSE ; TiCN ; UNF ; 2B
Spiral Flute Tap; #10 - 32 ; 2.756″ OAL ; HSSE ; TiCN ; 2B ; Series BU979000
| Thread Diameter Size (TDZ) | #10 | Tool Type | Rekord D-VA |
| Threads per Inch (TPI) | 32 | Chamfer | 2P-3P |
| Thread Standard | UNF | Coating | TiCN |
| Overall Length (OAL) | 2.756″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Steel | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSSCo | Series/List # | BU979000 |
| Thread Tolerance Class (TCTR) | 2B | Application | Blind Hole |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord D-VA tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for stainless steel, steel alloys & cast aluminum. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.017
