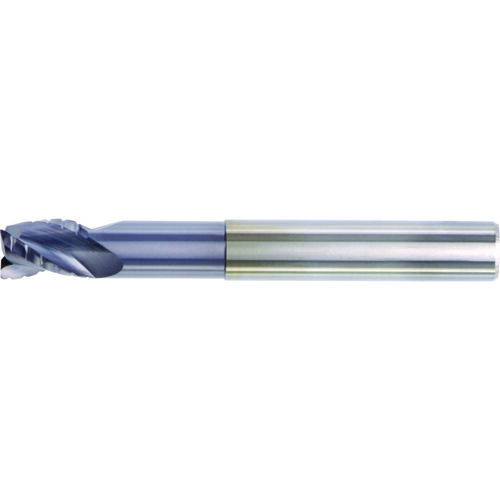

5/8X5/8X3/4-3.1/4X6 .03 3FL EM
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 3-1/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Applicable Material | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Overall Length (OAL) | 6″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | Uncoated | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 30 Degrees|CW | Decimal Equivalent | 0.625″ |
| Shank Type | Round |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0066
