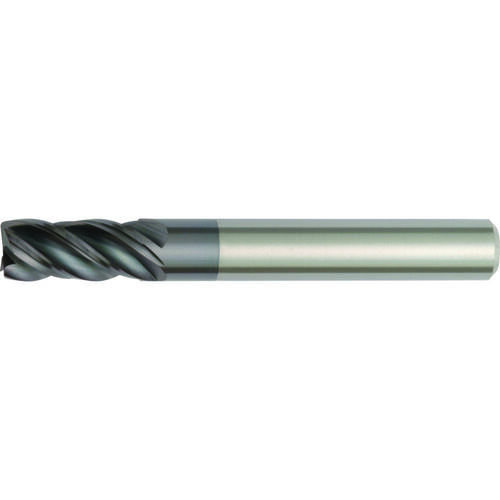

1.1/4X1.1/4X2.1/4X5 4FL SC CARB EM
| Cutting Diameter (DC) | 1-1/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Applicable Material | Super-Alloys / Titanium |
| Overall Length (OAL) | 5″ | Grade | ALTIN-MW |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting|Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 | Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | 38 Degrees|CW | Decimal Equivalent | 1.25″ |
| Shank Type | Weldon |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
2.5000
