1X1X1 1/8X3 1/4X5 1/2 .12 CARB EM

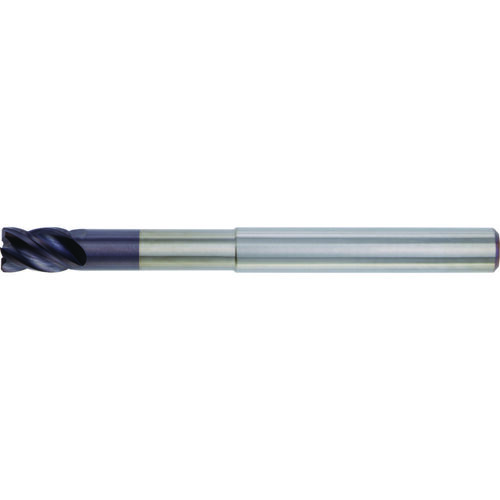

Corner Radius End Mill; 1″ Dia. × 1-1/8″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 3-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 5-1/2″ | Corner Radius (RE) | 0.12″ |
| Cutting Edge Material | Carbide | Grade | TIALN-LW |
| Coating | AlTiN | Tool Type | Center Cut|Single-End |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 38 Degrees|CW | Style | 82-01 SEM Side Cutting |
| Shank Type | Weldon | Decimal Equivalent | 1″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
2.7558
