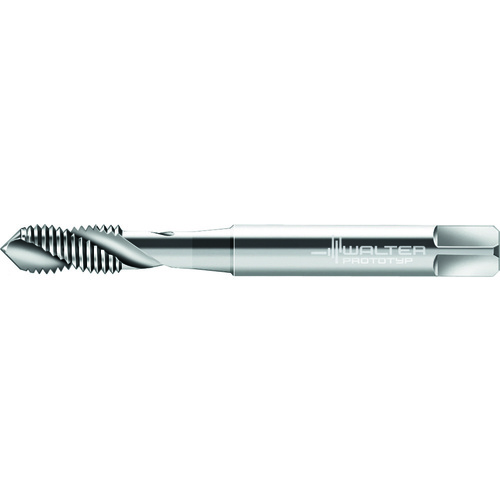

#6-32 UNC 2B 2 Flute HSS Bright Spiral Flute Tap
N22516-UNC6
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | #6 | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 32 | Standard | DIN 2184-1 |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2-1/4″ | Flute Length | 43/64″ |
| Thread Cutting Part Length (THL) | 1/4″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.158″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|35 Degrees | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS |
Product Features
| Family Description | N22516-UNC6 | Country of Origin | Germany |
Shipping Info
Package Weight
.000
