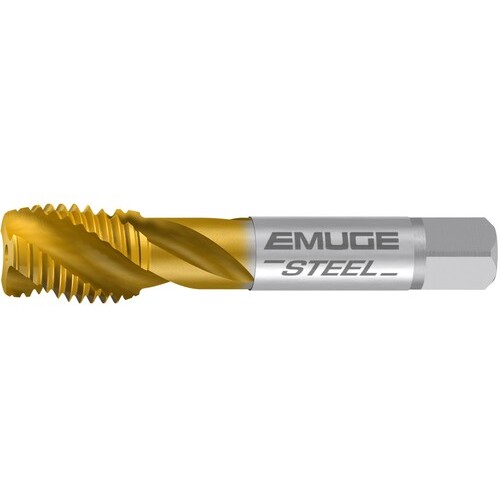

Spiral Flute Tap; M10 × 1 mm × 2.94″ OAL ; HSSE ; TiN ; Metric ; 6H
Spiral Flute Tap; M10 × 1 mm ; 2.94″ OAL ; HSSE ; TiN ; 6H ; Series AU501400
| Thread Diameter Size (TDZ) | M10 | Standard | ANSI |
| Thread Pitch (TP) | 1 mm | Tool Type | Enorm VA |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.94″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 0.71″ | Flute Type | Spiral |
| Usable Length (LU) | 1.378″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | AU501400 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.05
