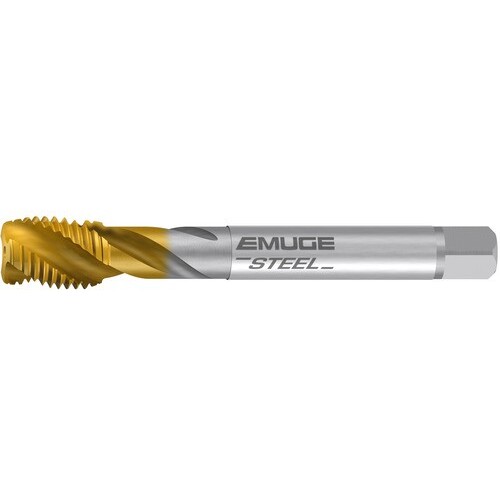

Spiral Flute Tap; M16 × 1.5 mm × 100 mm OAL ; HSSE ; TiN ; Metric ; 6H
Spiral Flute Tap; M16 × 1.5 mm ; 100 mm OAL ; HSSE ; TiN ; 6H
| Thread Diameter Size (TDZ) | M16 | Tool Type | Enorm |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Chamfer |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCo | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H | Series/List # | C0501400 |
| Standard | DIN | Application | Blind Hole |
Product Features
| Remarks | • The Enorm design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
