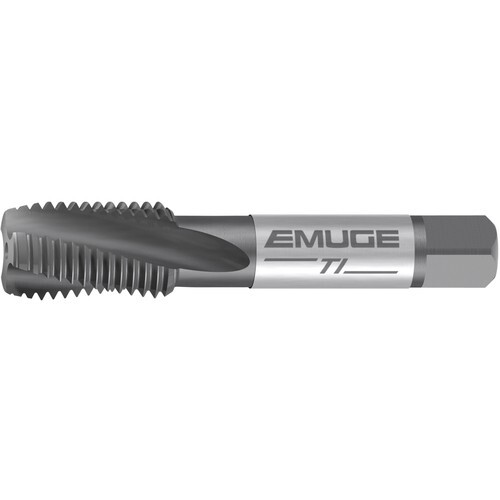

Spiral Flute Tap; 3/8″ -16 × 2.94″ OAL ; HSSE ; Nitride ; UNC ; 2BX
Spiral Flute Tap; 3/8″ - 16 ; 2.94″ OAL ; HSSE ; 2BX
| Thread Diameter Size (TDZ) | 3/8″ | Standard | ANSI |
| Threads per Inch (TPI) | 16 | Tool Type | Rekord D-TI |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.94″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.87″ | End Shape | Chamfer |
| Usable Length (LU) | 1.378″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | AU456001 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2BX |
Product Features
| Remarks | • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for titanium and high tensile strength materials • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Length
.50000
Package Width
3.75000
Package Height
.50000
Package Weight
0.9999
