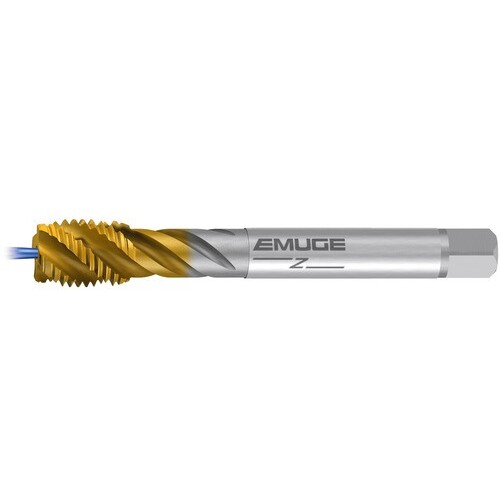

Spiral Flute Tap; M16 × 2 mm × 110 mm OAL ; HSSE ; TiN ; Metric ; 6H
Spiral Flute Tap; M16 × 2 mm ; 110 mm OAL ; HSSE ; TiN ; 6H
| Thread Diameter Size (TDZ) | M16 | Tool Type | Enorm Z/E |
| Thread Pitch (TP) | 2 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 27 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Stainless Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | C0973700 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (45°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
