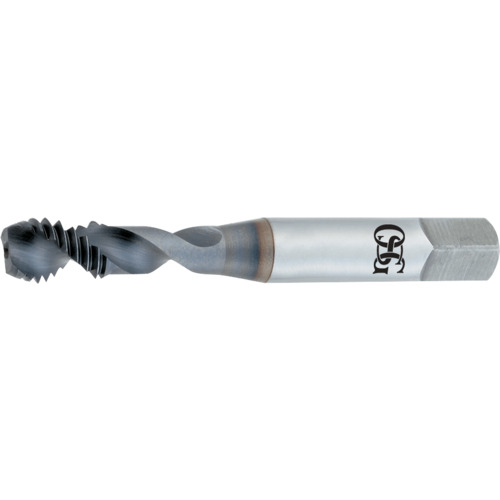

6-32 Dia.-2B-2FL - HSSE - TiCN - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; #6 - 32 ; 2″ OAL ; 2 FL ; HSSCo ; TiCN ; 2B ; Series 13058
| Thread Diameter Size (TDZ) | #6 | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 32 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 11/16″ | Flute Type | Spiral |
| Usable Length (LU) | 0.685″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 13058 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
