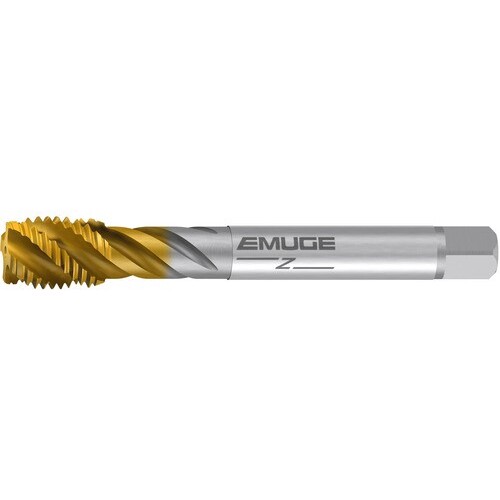

Spiral Flute Tap; M16 × 2 mm × 110 mm OAL ; HSSE ; TiN ; Metric ; 6H
Spiral Flute Tap; M16 × 2 mm ; 110 mm OAL ; HSSE ; TiN ; 6H
| Thread Diameter Size (TDZ) | M16 | Tool Type | Enorm Z |
| Thread Pitch (TP) | 2 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 27 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | C0503700 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • The Enorm Z design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
