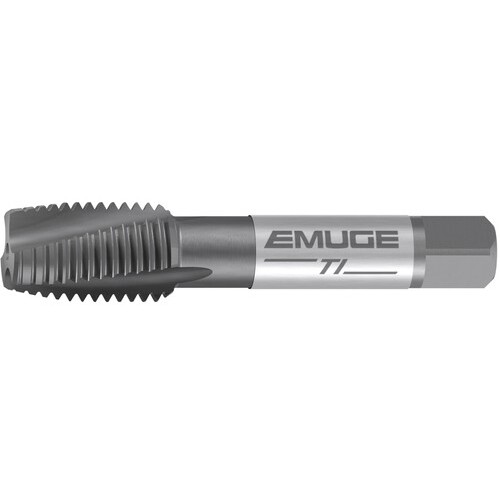

Spiral Flute Tap; #8 -32 × 2.13″ OAL ; HSSE ; Nitride ; UNC ; 2BX
Spiral Flute Tap; #8 - 32 ; 2.13″ OAL ; HSSE ; 2BX
| Thread Diameter Size (TDZ) | #8 | Standard | ANSI |
| Threads per Inch (TPI) | 32 | Tool Type | Rekord C-TI |
| Thread Standard | UNC | Chamfer | 4P-5P |
| Overall Length (OAL) | 2.13″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.51″ | End Shape | Chamfer |
| Usable Length (LU) | 0.827″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | AU306001 |
| Cutting Edge Material | HSSCo | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2BX |
Product Features
| Remarks | • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. • Longer tool life and more consistent thread quality. • Best suited for through hole applications. | Country of Origin | GERMANY |
