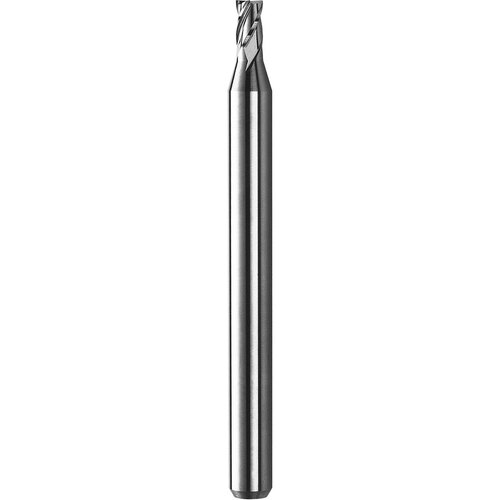

.039 End Mill 4FL SQ TA - SER M4S .039x1/8x.059x1-1/2
SQ End Mill; 0.039″ Dia. × 0.059″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.039″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.059″ | Usable Length (LU) | 1.441″ |
| Overall Length (OAL) | 1-1/2″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.039″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
2.32000
Package Width
.32000
Package Weight
0.013
