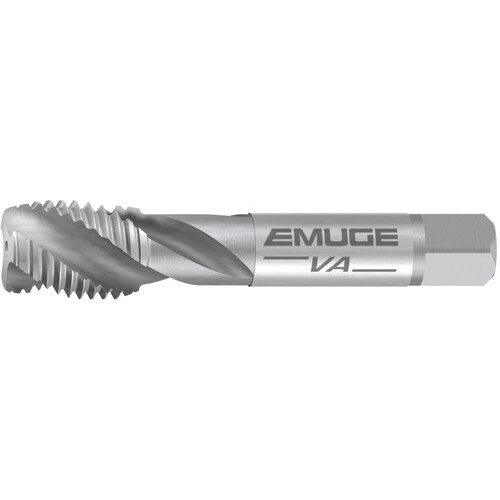

Spiral Flute Tap; M14 × 2 mm × 3.59″ OAL ; HSSE ; Bright ; Metric ; 6H
Spiral Flute Tap; M14 × 2 mm ; 3.59″ OAL ; HSSE ; Uncoated ; 6H
| Thread Diameter Size (TDZ) | M14 | Tool Type | Enorm VA |
| Thread Pitch (TP) | 2 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 3.59″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1.02″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | AU503000 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
| Standard | ANSI |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
