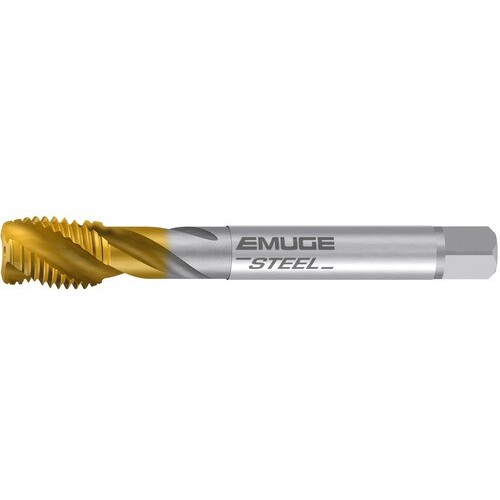

Spiral Flute Tap; M22 × 2.5 mm × 140 mm OAL ; HSSE ; TiN ; Metric ; 6H
Spiral Flute Tap; M22 × 2.5 mm ; 140 mm OAL ; HSSE ; TiN ; 6H ; Series C0501400
| Thread Diameter Size (TDZ) | M22 | Tool Type | Enorm |
| Thread Pitch (TP) | 2.5 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 140 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 32 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | C0501400 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • The Enorm design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
