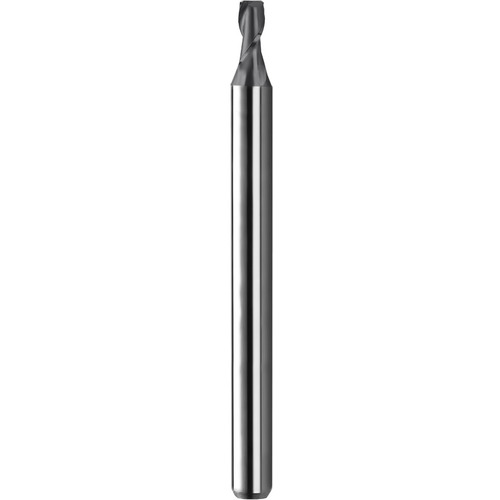

.034 End Mill 2FL SQ TA - SER M2S .034x1/8x.102x1-1/2
SQ End Mill; 0.034″ Dia. × 0.102″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series M2S
| Cutting Diameter (DC) | 0.034″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1.398″ |
| Depth of Cut Maximum (APMX) | 0.102″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.034″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | M2S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
2.32000
Package Width
.32000
Package Weight
0.013
