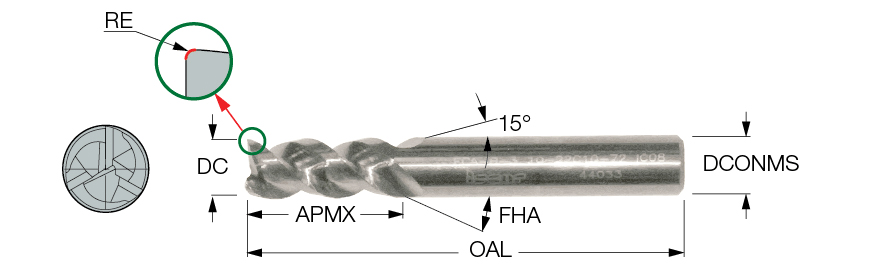

ECA-B-3 08-20C08R3-63 IC08

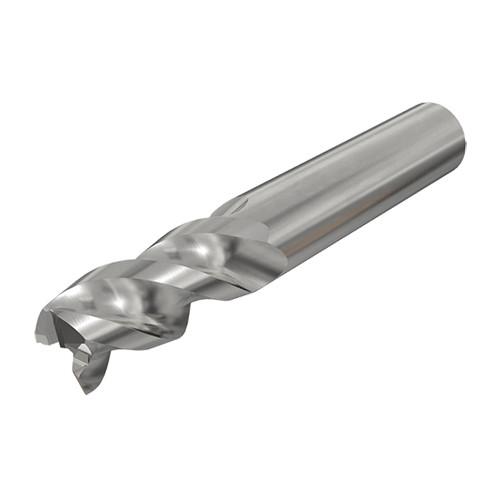

SQ End Mill; 8 mm Dia. × 20 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 3 mm RE ; 3 FL ; 20 mm LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 8 mm | Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 20 mm | Grade | IC08 |
| Overall Length (OAL) | 63 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 20 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3 flute, 45° helix medium length solid carbide endmills. Used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.081
