7/16-20 UNF 3FL H11_SPFL

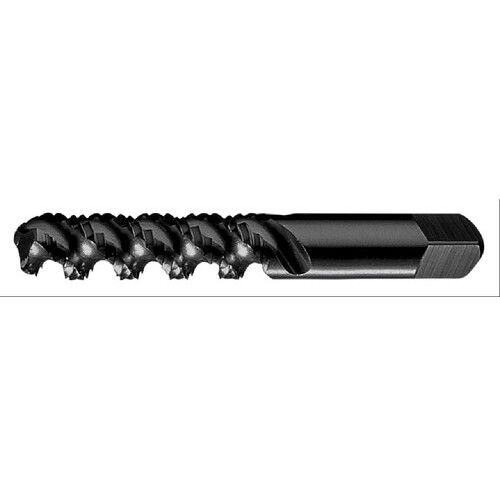

Spiral Flute Tap; 7/16″ -20 × 3.156″ OAL ; HSS ; | Black Oxide | ; | NF | ; | H11 | ; Series SFGP+5-SO
| Thread Diameter Size (TDZ) | 7/16″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 20 | Thread Tolerance Class (TCTR) | H11 |
| Thread Standard | NF | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 3.156″ | Coating | Black Oxide |
| Usable Length (LU) | 7/8″ | ToolTypeName | Spiral Flute Taps |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Series/List # | SFGP+5-SO |
| Applicable Material | | Steel | Cast Iron | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.073
