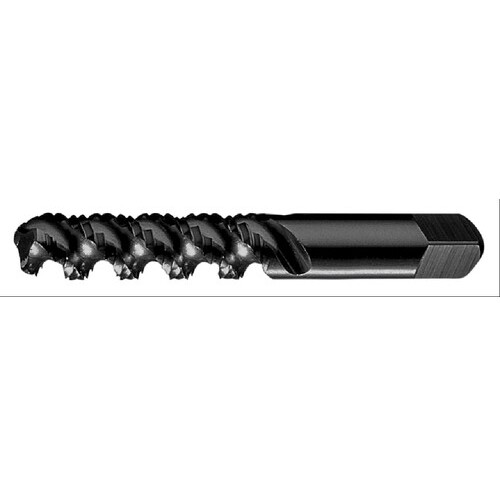

1/4-28 UNF 3FL H11 SPFL
Spiral Flute Tap; 1/4″ -28 × 2-1/2″ OAL ; HSS ; | Black Oxide | ; | NF | ; | H11 | ; Series SFGP+5-SO

| Thread Diameter Size (TDZ) | 1/4″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 28 | Thread Tolerance Class (TCTR) | H11 |
| Thread Standard | NF | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 2-1/2″ | Coating | Black Oxide |
| Usable Length (LU) | 5/8″ | ToolTypeName | Spiral Flute Taps |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Series/List # | SFGP+5-SO |
| Applicable Material | | Steel | Cast Iron | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.027
