3/4-16 UNF 4FL H11_SPFL

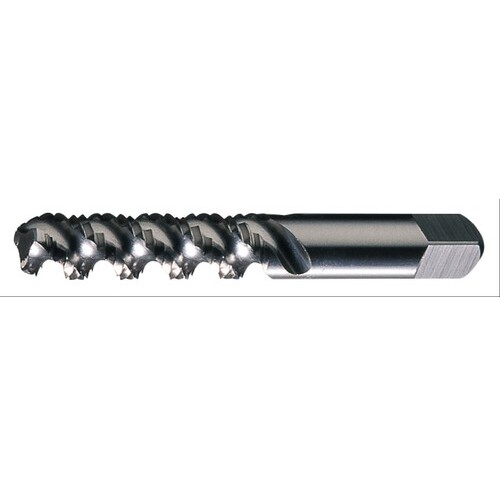

Spiral Flute Tap; 3/4″ -16 × 4-1/4″ OAL ; HSS ; Bright ; | NF | ; | H11 | ; Series SFGP+5
| Thread Diameter Size (TDZ) | 3/4″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 16 | Thread Tolerance Class (TCTR) | H11 |
| Thread Standard | NF | Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 4-1/4″ | Coating | Uncoated |
| Usable Length (LU) | 1-7/32″ | ToolTypeName | Spiral Flute Taps |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Series/List # | SFGP+5 |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.269
