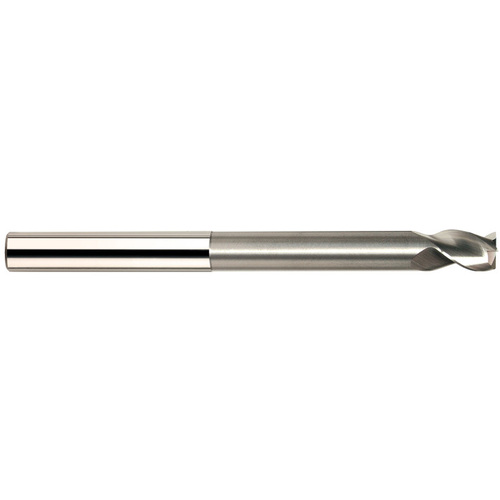

16.0 End Mill 3FL 3.00R TB - S-CARB 16x16x20x125
SQ End Mill; 16 mm Dia. × 20 mm LOC × 16 mm Shank Dia. × 125 mm OAL ; 3 FL ; Carbide ; TiB2 ; Series S-CARB
| Cutting Diameter (DC) | 16 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 105 mm |
| Depth of Cut Maximum (APMX) | 20 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 125 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiB2 | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | S-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.722
