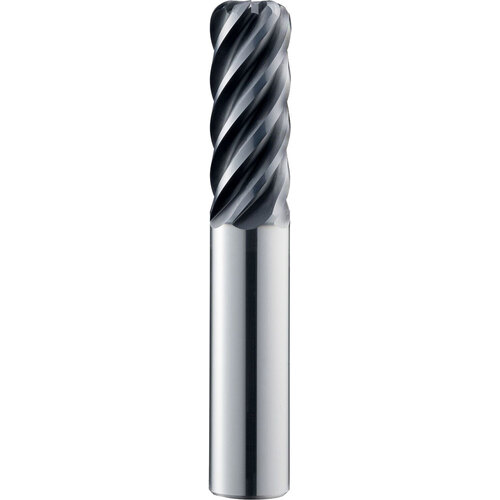

8.0 End Mill 6FL 1.20R TX - T-CARB 8x8x20x63
SQ End Mill; 8 mm Dia. × 20 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 6 FL ; Carbide ; AlTiN ; Series T-CARB
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 20 mm | Usable Length (LU) | 44 mm |
| Overall Length (OAL) | 63 mm | Corner Radius (RE) | 1.2 mm |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 41 Degrees | Series/List # | T-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.097
