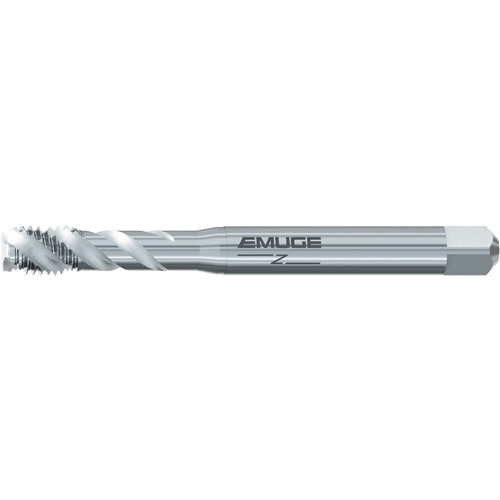

Spiral Flute Tap; M4 × 0.7 mm × 63 mm OAL ; HSSE ; Bright ; Metric ; 6G ; Series 513520
Spiral Flute Tap; M4 × 0.7 mm ; 63 mm OAL ; HSSE ; Uncoated ; 6G ; Series B0513520
| Thread Diameter Size (TDZ) | M4 | Standard | DIN |
| Thread Pitch (TP) | 0.7 mm | Tool Type | Enorm Z/E |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 63 mm | Coating | Uncoated |
| Usable Length (LU) | 0.8268″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | B0513520 |
| Thread Tolerance Class (TCTR) | 6G | Application | Blind Hole |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
