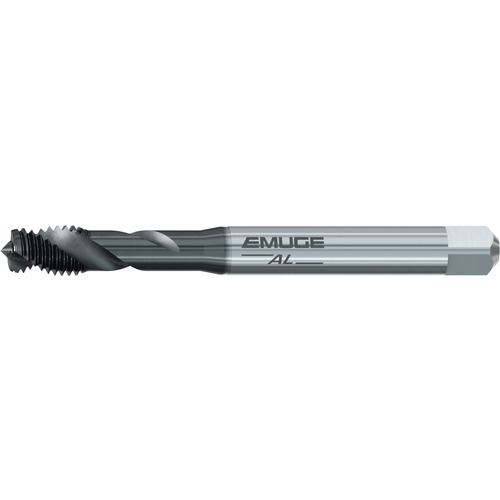

Spiral Flute Tap; M3 × 0.5 mm × 56 mm OAL ; 2 FL ; HSSE ; GLT-8 ; Metric ; 6H ISO 2 ; Series 050S800
Spiral Flute Tap; M3 × 0.5 mm ; 56 mm OAL ; 2 FL ; HSSE ; DLC ; ISO 2 | 6H ; Series 050S800
| Thread Diameter Size (TDZ) | M3 | Thread Tolerance Class (TCTR) | ISO 2 | 6H |
| Thread Pitch (TP) | 0.5 mm | Standard | DIN |
| Thread Standard | Metric | Tool Type | Enorm AL |
| Overall Length (OAL) | 56 mm | Chamfer | 2P-3P |
| Usable Length (LU) | 18 mm | Coating | DLC |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Flute Type | Spiral |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 050S800 |
| Cutting Edge Material | HSSE | Application | Blind Hole |
Product Features
| Remarks | • The Enorm AL design is typically for blind hole threads in long chipping aluminum alloys. • Longer tool life and more consistent thread quality. • The fast spiral flute (45°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
