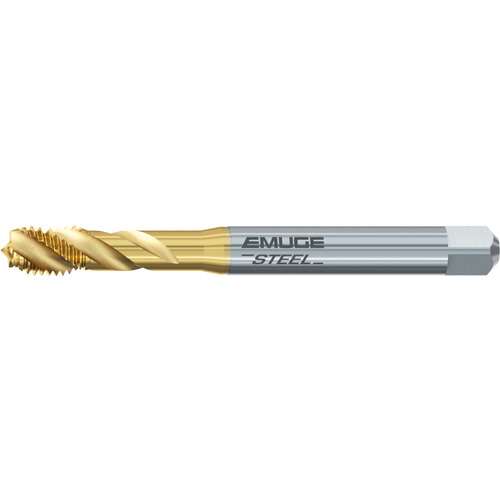

Spiral Flute Tap; M6 × 1 mm × 80 mm OAL ; HSSE ; TiN ; Metric ; 6H ISO 2 ; Series 501400
Spiral Flute Tap; M6 × 1 mm ; 80 mm OAL ; HSSE ; TiN ; ISO 2 | 6H ; Series 501400
| Thread Diameter Size (TDZ) | M6 | Standard | DIN |
| Thread Pitch (TP) | 1 mm | Tool Type | Enorm |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 80 mm | Coating | TiN |
| Usable Length (LU) | 30 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | B0501400 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
Product Features
| Remarks | • The Enorm design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
