 Enorm 1-STEEL (1)/(3D) Enorm 1-STEEL (1)_Enlarge.jpg)
M 10-ISO2/6H 1ENORM-LH

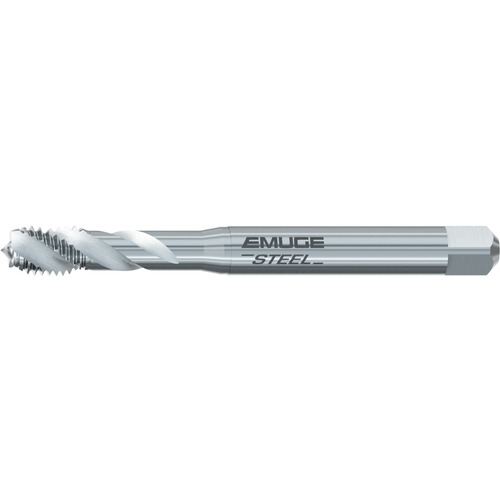

Spiral Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; HSSE ; Uncoated ; ISO 2 | 6H ; Series 501050
| Thread Diameter Size (TDZ) | M10 | Standard | DIN |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Enorm |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Coating | Uncoated |
| Usable Length (LU) | 39 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | B0501050 |
| Thread Tolerance Class (TCTR) | 6H | Application | Blind Hole |
Product Features
| Remarks | • The Enorm design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
