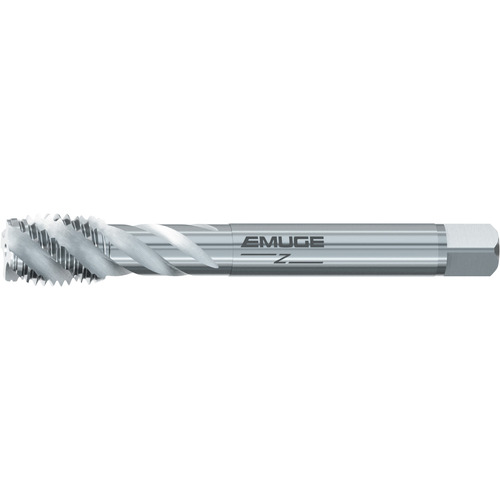

Spiral Flute Tap; M12 × 1.75 mm × 110 mm OAL ; HSSE ; Bright ; Metric ; 7G ; Series 503530
Spiral Flute Tap; M12 × 1.75 mm ; 110 mm OAL ; HSSE ; Uncoated ; 7G ; Series 503530
| Thread Diameter Size (TDZ) | M12 | Tool Type | Enorm Z |
| Thread Pitch (TP) | 1.75 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Stainless Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | C0503530 |
| Thread Tolerance Class (TCTR) | 7G | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • The Enorm Z design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
