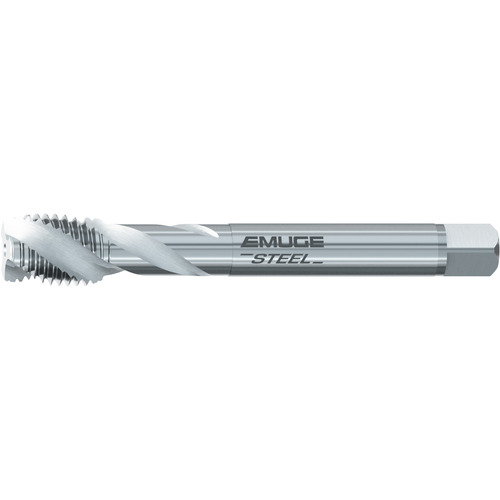

Spiral Flute Tap; M24 × 3 mm × 160 mm OAL ; HSSE ; Bright ; Metric ; 6G ; Series 501020
Spiral Flute Tap; M24 × 3 mm ; 160 mm OAL ; HSSE ; Uncoated ; 6G ; Series 501020
| Thread Diameter Size (TDZ) | M24 | Tool Type | Enorm Steel |
| Thread Pitch (TP) | 3 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 160 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | C0501020 |
| Thread Tolerance Class (TCTR) | 6G | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
