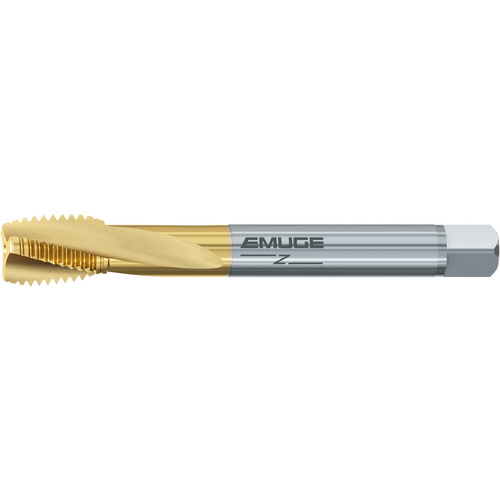

Spiral Flute Tap; M8 × 1 mm × 90 mm OAL ; HSSE ; TiN ; Metric ; 6HX ; Series 453701
Spiral Flute Tap; M8 × 1 mm ; 90 mm OAL ; HSSE ; TiN ; 6HX ; Series 453701
| Thread Diameter Size (TDZ) | M8 | Tool Type | Rekord D-Z |
| Thread Pitch (TP) | 1 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 90 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | C0453701 |
| Thread Tolerance Class (TCTR) | 6HX | Application | Blind Hole |
| Standard | DIN |
Product Features
| Remarks | • Rekord D tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
