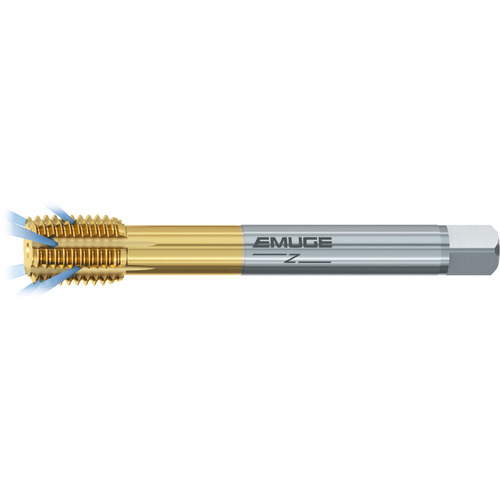

‎Spiral Flute Tap; 3/4″ -16 × 110 mm OAL ; HSSE ; TiN ; UNF ; 2BX ; Series W10F000

‎Spiral Flute Tap; 3/4″ - 16 ; 110 mm OAL ; HSSE ; TiN ; 2BX ; Series W10F000

Item # ER4513472

Brand: Emuge-Franken

MFG #: CW10F000.5050

Legacy Part #: ER4513472

TradeName: EMUGE - Z

Quantity Available

Thread Diameter Size (TDZ)

3/4″

Tool Type

Roll Form - Druck Z

Threads per Inch (TPI)

Chamfer

‎2P-3P

Thread Standard

UNF

Coating

TiN

Overall Length (OAL)

110 mm

Cutting Direction (HAND)

Right Hand

Connection Diameter Machine Side (DCONMS)

0.59″

Coolant Supply Property (CSP)

Coolant Thru

Applicable Material

| General Purpose |

Measurement Type

Inch

Cutting Edge Material

HSSE-PM

Series/List #

CW10F000

Thread Tolerance Class (TCTR)

2BX

Application

Blind Hole

Standard

DIN | ANSI

Product Features

Remarks

• The Druck Z roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Shipping Info

Package Weight

.990
