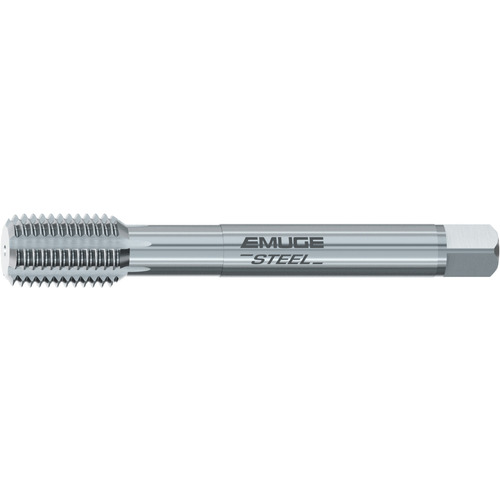

‎Spiral Flute Tap; 7/8″ -14 × 4.921″ OAL ; HSSE ; Nitride ; UNF ; 2BX ; Series U921000

‎Spiral Flute Tap; 7/8″ - 14 ; 4.921″ OAL ; HSSE ; 2BX ; Series U921000

Item # ER4513410

Brand: Emuge-Franken

MFG #: CU921000.5051

Legacy Part #: ER4513410

TradeName: EMUGE - STEEL

Quantity Available

Thread Diameter Size (TDZ)

7/8″

Standard

DIN | ANSI

Threads per Inch (TPI)

Tool Type

Roll Form - Druck

Thread Standard

UNF

Chamfer

‎2P-3P

Overall Length (OAL)

4.921″

Cutting Direction (HAND)

Right Hand

Connection Diameter Machine Side (DCONMS)

0.697″

Coolant Supply Property (CSP)

External

Applicable Material

| General Purpose |

Measurement Type

Inch

Cutting Edge Material

HSSE

Series/List #

CU921000

Thread Tolerance Class (TCTR)

2BX

Application

Blind Hole

Product Features

Remarks

• The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Shipping Info

Package Weight

.990
