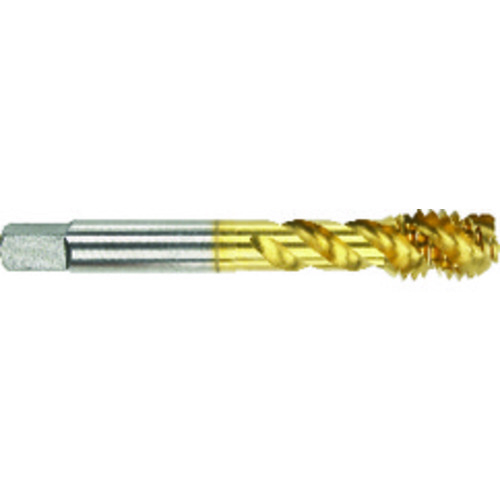

M14 Metric 3-Flute, D7 Semi-Bottoming Series/List # 2091G Spiral Flute Tap

‎Spiral Flute Tap; M14 × 2 mm ; 3-19/32″ OAL ; 3 FL ; HSS ; TiN ; D7 ; Series 2091G

Item # MT3595271

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 95271

UPC #: 01029959 | 68612595271 | 686125952716

Quantity Available

Virtual Catalog

Thread Diameter Size (TDZ)

M14

Cutting Edge Material

HSS

Thread Pitch (TP)

2 mm

Thread Tolerance Class (TCTR)

Thread Standard

Metric

Tool Type

Production Tap

Overall Length (OAL)

‎3-19/32″

Coating

TiN

Thread Cutting Part Length (THL)

0.69″

Flute Type

Spiral

Flute Count (NOF)

Style

Semi-Bottoming

Flute Helix Angle (FHA)

48 Degree

Measurement Type

Metric

Applicable Material

| Steel | Stainless Steel |

Series/List #

2091G

Product Features

Remarks

ShearTapô• ShearTapô for Stainless Steel & Carbon Steel up to 35Rc hardness.• CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece.• Semi-Bottoming Style are designed to lift the chips sout of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge opeings, keyways and other interruptions in the tapped hole.• TiN Coating - Titanium Nitride increases wear resistance, reduces firiction and galling, reduces tapping torque, improves thread quality, and allows increased cutting speeds. Productivity and tool life are improved.

Country of Origin

USA

Shipping Info

Additional Fees and Notes

Package Length

1.80000

Package Width

.20000

Package Height

.20000

Package Weight

0.15
