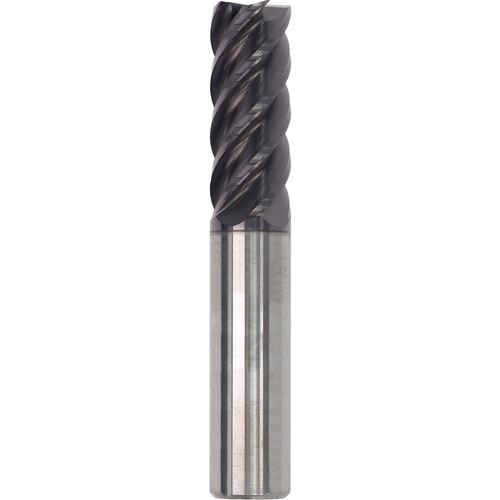

20.0 End Mill 5FL SQ TA - V-CARB 20X20X50X100
SQ End Mill; 20 mm Dia. × 50 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 5 FL ; Carbide ; AlTiN ; Series V-CARB
| Cutting Diameter (DC) | 20 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Usable Length (LU) | 50 mm |
| Depth of Cut Maximum (APMX) | 50 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 100 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | V-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.93
