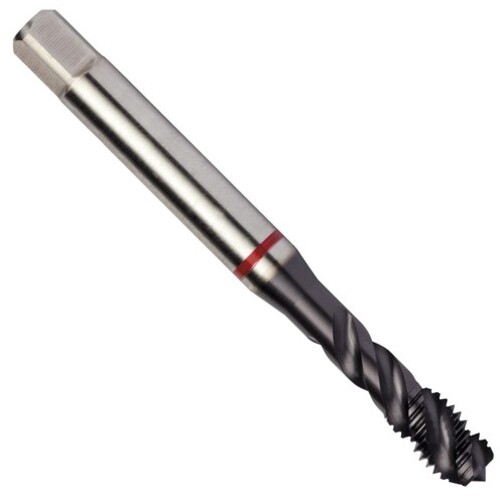

#6-32 HSS-E PM 3 Flute 2B 45 Degree Red Shark Machine Tap Spiral Flute-TiAlN/Top E-code # E8106-32
Spiral Flute Tap; #6 - 32 ; 2.205″ OAL ; 3 FL ; HSSE-PM ; TiAlN ; 2B ; Series E810
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | #6 | Standard | DIN ANSI |
| Threads per Inch (TPI) | 32 | Tool Type | Machine Tap |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.205″ | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 0.256″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Length Group | 2.5xD |
| Cutting Edge Material | HSSE-PM | Square Size | 0.108″ |
| Thread Tolerance Class (TCTR) | 2B | Measurement Type | Machine Screw |
| Special Feature | Red Shark | Series/List # | E810 |
Product Features
| Family Description | E-code # E8106-32 | Country of Origin | India |
Shipping Info
Package Length
4.00000
Package Width
.38800
Package Height
.35100
Package Weight
0.014
