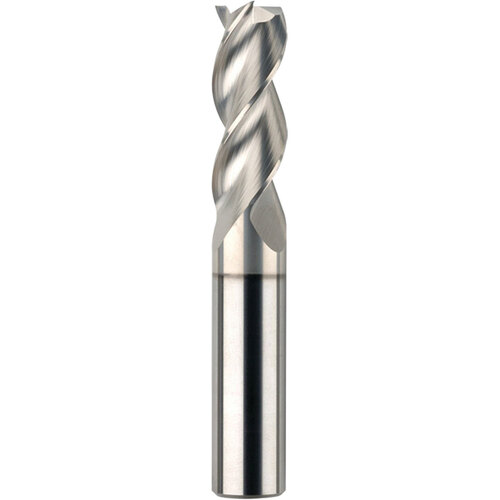

25.0 End Mill 3FL SQ TB - S-CARB 25x25x50x125
SQ End Mill; 25 mm Dia. × 50 mm LOC × 25 mm Shank Dia. × 125 mm OAL ; 3 FL ; Carbide ; TiB2 ; Series S-CARB
| Cutting Diameter (DC) | 25 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Usable Length (LU) | 75 mm |
| Depth of Cut Maximum (APMX) | 50 mm | Corner Radius (RE) | 0 mm |
| Overall Length (OAL) | 125 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiB2 | Decimal Equivalent | 0.9843″ |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | S-CARB |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.614
