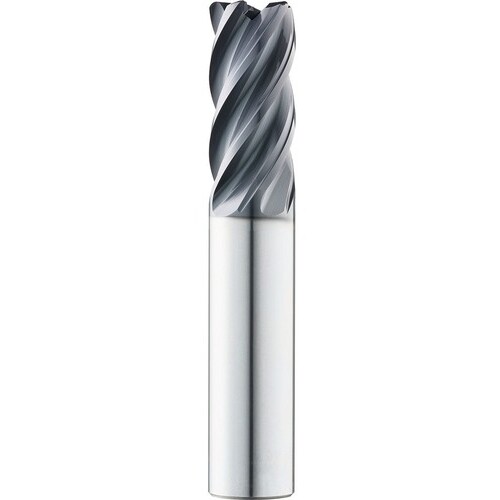

1/2 End Mill 5FL .015R TA WF - Z-CARB HPR 1/2x1/2x5/8x3
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.015″ RE ; 5 FL ; 2-7/8″ LBS ; Carbide ; AlTiN ; Series Z-CARB HPR
| Cutting Diameter (DC) | 1/2″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/8″ | Usable Length (LU) | 2-7/8″ |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | Z-CARB HPR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
