38584 1/2X1/2X1X3 5FL .03

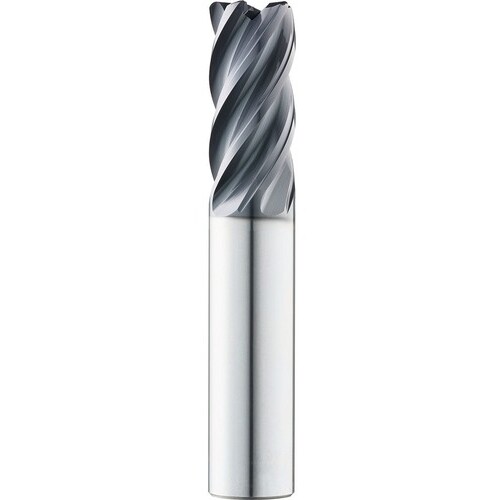

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 5 FL ; 2″ LBS ; Carbide ; AlTiN ; Series Z-CARB HPR
| Cutting Diameter (DC) | 1/2″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1″ | Usable Length (LU) | 2″ |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | Z-CARB HPR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.287
